| 电压 | 芯数 | 电极 | 货号 | 价格 |
|---|---|---|---|---|
| M1 | 5KV | 1 | G5719E6AB814FF-1 | ￥330.00 |
| M1 | 5KV | 2 | G5719E6AB814FF-2 | ￥410.00 |
| M1 | 5KV | 4 | G5719E6AB814FF-3 | ￥570.00 |
| M1 | 5KV | 6 | G5719E6AB814FF-4 | ￥730.00 |
| M1 | 5KV | 8 | G5719E6AB814FF-5 | ￥890.00 |
| M1 | 5KV | 10 | G5719E6AB814FF-6 | ￥1050.00 |
| M1 | 5KV | 12 | G5719E6AB814FF-7 | ￥1210.00 |
| M1 | 5KV | 15 | G5719E6AB814FF-8 | ￥1450.00 |
| M1.8 | 3KV | 1 | G5719E6AB814FF-9 | ￥300.00 |
| M1.8 | 3KV | 2 | G5719E6AB814FF-10 | ￥350.00 |
| M1.8 | 3KV | 4 | G5719E6AB814FF-11 | ￥450.00 |
| M1.8 | 3KV | 6 | G5719E6AB814FF-12 | ￥550.00 |
| M1.8 | 3KV | 8 | G5719E6AB814FF-13 | ￥650.00 |
| M1.8 | 3KV | 10 | G5719E6AB814FF-14 | ￥750.00 |
| M1.8 | 3KV | 12 | G5719E6AB814FF-15 | ￥850.00 |
| M1.8 | 5KV | 1 | G5719E6AB814FF-16 | ￥330.00 |
| M1.8 | 5KV | 2 | G5719E6AB814FF-17 | ￥410.00 |
| M1.8 | 5KV | 4 | G5719E6AB814FF-18 | ￥570.00 |
| M1.8 | 5KV | 6 | G5719E6AB814FF-19 | ￥730.00 |
| M1.8 | 5KV | 8 | G5719E6AB814FF-20 | ￥890.00 |
| M1.8 | 5KV | 10 | G5719E6AB814FF-21 | ￥1050.00 |
| M1.8 | 5KV | 12 | G5719E6AB814FF-22 | ￥1210.00 |
| M3 | 3KV | 1 | G5719E6AB814FF-23 | ￥300.00 |
| M3 | 3KV | 2 | G5719E6AB814FF-24 | ￥350.00 |
| M3 | 3KV | 4 | G5719E6AB814FF-25 | ￥450.00 |
| M3 | 3KV | 6 | G5719E6AB814FF-26 | ￥550.00 |
| M3 | 3KV | 8 | G5719E6AB814FF-27 | ￥650.00 |
| M3 | 3KV | 10 | G5719E6AB814FF-28 | ￥750.00 |
| M3 | 3KV | 12 | G5719E6AB814FF-29 | ￥850.00 |
| M3 | 5KV | 1 | G5719E6AB814FF-30 | ￥330.00 |
| M3 | 5KV | 2 | G5719E6AB814FF-31 | ￥410.00 |
| M3 | 5KV | 4 | G5719E6AB814FF-32 | ￥570.00 |
| M3 | 5KV | 6 | G5719E6AB814FF-33 | ￥730.00 |
| M3 | 5KV | 8 | G5719E6AB814FF-34 | ￥890.00 |
| M3 | 5KV | 10 | G5719E6AB814FF-35 | ￥1050.00 |
| M3 | 5KV | 12 | G5719E6AB814FF-36 | ￥1210.00 |
| M3 | 10KV | 1 | G5719E6AB814FF-37 | ￥550.00 |
| M3 | 10KV | 2 | G5719E6AB814FF-38 | ￥850.00 |
| M3 | 10KV | 3 | G5719E6AB814FF-39 | ￥1150.00 |
| M3 | 30KV | 1 | G5719E6AB814FF-40 | ￥750.00 |
| M4 | 3KV | 1 | G5719E6AB814FF-41 | ￥330.00 |
| M4 | 3KV | 2 | G5719E6AB814FF-42 | ￥410.00 |
| M4 | 3KV | 4 | G5719E6AB814FF-43 | ￥570.00 |
| M4 | 3KV | 6 | G5719E6AB814FF-44 | ￥730.00 |
| M4 | 3KV | 8 | G5719E6AB814FF-45 | ￥890.00 |
| M4 | 3KV | 10 | G5719E6AB814FF-46 | ￥1050.00 |
| M4 | 3KV | 12 | G5719E6AB814FF-47 | ￥1210.00 |
| M4 | 5KV | 1 | G5719E6AB814FF-48 | ￥370.00 |
| M4 | 5KV | 2 | G5719E6AB814FF-49 | ￥490.00 |
| M4 | 5KV | 4 | G5719E6AB814FF-50 | ￥730.00 |
| M4 | 5KV | 6 | G5719E6AB814FF-51 | ￥970.00 |
| M4 | 5KV | 8 | G5719E6AB814FF-52 | ￥1210.00 |
| M4 | 5KV | 10 | G5719E6AB814FF-53 | ￥1450.00 |
| M4 | 5KV | 12 | G5719E6AB814FF-54 | ￥1690.00 |
| M4 | 10KV | 1 | G5719E6AB814FF-55 | ￥570.00 |
| M4 | 10KV | 2 | G5719E6AB814FF-56 | ￥890.00 |
| M4 | 10KV | 3 | G5719E6AB814FF-57 | ￥1210.00 |
| M4 | 30KV | 1 | G5719E6AB814FF-58 | ￥850.00 |
| M5 | 3KV | 1 | G5719E6AB814FF-59 | ￥340.00 |
| M5 | 3KV | 2 | G5719E6AB814FF-60 | ￥430.00 |
| M5 | 3KV | 4 | G5719E6AB814FF-61 | ￥610.00 |
| M5 | 3KV | 6 | G5719E6AB814FF-62 | ￥790.00 |
| M5 | 3KV | 8 | G5719E6AB814FF-63 | ￥970.00 |
| M5 | 3KV | 10 | G5719E6AB814FF-64 | ￥1150.00 |
| M5 | 3KV | 12 | G5719E6AB814FF-65 | ￥1330.00 |
| M5 | 5KV | 1 | G5719E6AB814FF-66 | ￥490.00 |
| M5 | 5KV | 2 | G5719E6AB814FF-67 | ￥730.00 |
| M5 | 5KV | 3 | G5719E6AB814FF-68 | ￥970.00 |
| M5 | 10KV | 1 | G5719E6AB814FF-69 | ￥590.00 |
| M5 | 10KV | 2 | G5719E6AB814FF-70 | ￥930.00 |
| M5 | 10KV | 3 | G5719E6AB814FF-71 | ￥1270.00 |
| M5 | 30KV | 1 | G5719E6AB814FF-72 | ￥950.00 |
| M6 | 3KV | 1 | G5719E6AB814FF-73 | ￥400.00 |
| M6 | 3KV | 2 | G5719E6AB814FF-74 | ￥550.00 |
| M6 | 3KV | 3 | G5719E6AB814FF-75 | ￥700.00 |
| M6 | 5KV | 1 | G5719E6AB814FF-76 | ￥500.00 |
| M6 | 5KV | 2 | G5719E6AB814FF-77 | ￥750.00 |
| M6 | 5KV | 3 | G5719E6AB814FF-78 | ￥1000.00 |
| M6 | 10KV | 1 | G5719E6AB814FF-79 | ￥600.00 |
| M6 | 10KV | 2 | G5719E6AB814FF-80 | ￥950.00 |
| M6 | 10KV | 3 | G5719E6AB814FF-81 | ￥1300.00 |
| M6 | 30KV | 1 | G5719E6AB814FF-82 | ￥1050.00 |
| M8 | 3KV | 1 | G5719E6AB814FF-83 | ￥410.00 |
| M8 | 3KV | 2 | G5719E6AB814FF-84 | ￥570.00 |
| M8 | 3KV | 3 | G5719E6AB814FF-85 | ￥730.00 |
| M8 | 5KV | 1 | G5719E6AB814FF-86 | ￥550.00 |
| M8 | 5KV | 2 | G5719E6AB814FF-87 | ￥850.00 |
| M8 | 5KV | 3 | G5719E6AB814FF-88 | ￥1050.00 |
| M8 | 30KV | 1 | G5719E6AB814FF-89 | ￥1150.00 |
| M8 | 50KV | 1 | G5719E6AB814FF-90 | ￥2150.00 |
| M10 | 3KV | 1 | G5719E6AB814FF-91 | ￥420.00 |
| M10 | 3KV | 2 | G5719E6AB814FF-92 | ￥590.00 |
| M10 | 3KV | 3 | G5719E6AB814FF-93 | ￥760.00 |
| M10 | 5KV | 1 | G5719E6AB814FF-94 | ￥650.00 |
| M10 | 5KV | 2 | G5719E6AB814FF-95 | ￥1050.00 |
| M10 | 5KV | 3 | G5719E6AB814FF-96 | ￥1450.00 |
| M10 | 30KV | 1 | G5719E6AB814FF-97 | ￥1250.00 |
| M12 | 3KV | 1 | G5719E6AB814FF-98 | ￥550.00 |
| M12 | 30KV | 1 | G5719E6AB814FF-99 | ￥1450.00 |
| M16 | 3KV | 1 | G5719E6AB814FF-100 | ￥650.00 |
| M16 | 30KV | 1 | G5719E6AB814FF-101 | ￥1650.00 |
| M20 | 3KV | 1 | G5719E6AB814FF-102 | ￥850.00 |
| M20 | 30KV | 1 | G5719E6AB814FF-103 | ￥1850.00 |
| M30 | 3KV | 1 | G5719E6AB814FF-104 | ￥1250.00 |

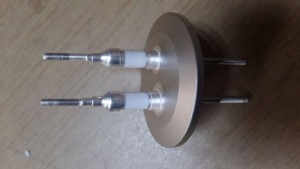

一.真空高压电极芯
1．应用范围：因具有可靠的密封性能和良好的高压绝缘性能，广泛用在超高真空，高真空系统中，用于真空系统与外界传输电压电流，电信号，温度信号,测量信号等连接。
2．工艺：经过高科技的压模，冲压，高温烧结，金属化，真空镀化，钎焊，捡漏等多道工艺加工而成，一般由真空陶瓷，可伐，不锈钢，无氧铜等材料组成，质量可靠。
3．技术指标：
1.电压：从常压到100KV。
2.电流：1-1000Ａ
３.气压范围：１０－１０帕至２０Mpa
4.温度：-270度至450度
5.法兰接口形式：KF，CF，LF等
6.芯数：1-100芯
A 类
真空电极芯技术指标：尺寸作为参考，以实物为主
型号包含：类别+导电杆直径+耐压，如B-1-5型号：B类图，导电杆直径1毫米，耐压5KV
型 号 （类别-直径-耐压） | 导电杆直径M（mm） | 耐压（KV） | 电流（A） | 总长L（mm | 内杆长A（mm ） | 开孔直径∮(mm) | 导电材料 | 类别(图) |
B-1-5 | 1 | 5 | 2 | 90 | 47 | 5.5 | 4J33 | B |
A-1.8-3 | 1.8 | 3 | 5 | 90 | 37 | 7.1 | 4J33 | A |
B-1.8-5 | 1.8 | 5 | 5 | 90 | 37 | 7.1 | 4J33 | B |
A-3-3 | 3 | 3 | 10 | 90 | 37 | 7.1 | 4J33 | A |
B-3-5 | 3 | 5 | 10 | 90 | 37 | 7.1 | 4J33 | B |
B-3-10 | 3 | 10 | 10 | 120 | 45 | 15.1 | 4J33 | B |
B-3-30 | 3 | 30 | 10 | 200 | 78 | 28 | 4J33 | B |
B-3-50 | 3 | 50 | 10 | 250 | 70 | 60 | 4J33 | B |
B-3-100 | 3 | 100 | 10 | 400 | 80 | 60 | 4J33 | B |
A-4-3 | 4 | 3 | 20 | 100 | 40 | 10 | Tu1 | A |
B-4-5 | 4 | 5 | 20 | 100 | 50 | 10 | Tu1 | B |
B-4-10 | 4 | 10 | 20 | 120 | 45 | 15.1 | Tu1 | B |
B-4-30 | 4 | 30 | 20 | 200 | 78 | 28 | Tu1 | B |
B-4-50 | 4 | 50 | 20 | 250 | 70 | 60 | Tu1 | B |
B-4-100 | 4 | 100 | 20 | 400 | 80 | 60 | Tu1 | B |
A-5-3 | 5 | 3 | 30 | 100 | 40 | 10 | Tu1 | A |
B-5-5 | 5 | 5 | 30 | 160 | 70 | 15.1 | Tu1 | B |
B-5-10 | 5 | 10 | 30 | 120 | 45 | 15.1 | Tu1 | B |
B-5-30 | 5 | 30 | 30 | 200 | 78 | 28 | Tu1 | B |
B-5-50 | 5 | 50 | 30 | 250 | 70 | 60 | Tu1 | B |
B-5-100 | 5 | 100 | 30 | 400 | 80 | 60 | Tu1 | B |
A-6-3 | 6 | 3 | 40 | 120 | 55 | 15.1 | Tu1 | A |
B-6-5 | 6 | 5 | 40 | 160 | 70 | 15.1 | Tu1 | B |
B-6-10 | 6 | 10 | 40 | 160 | 45 | 15.1 | Tu1 | B |
B-6-30 | 6 | 30 | 40 | 200 | 78 | 28 | Tu1 | B |
B-6-50 | 6 | 50 | 40 | 250 | 70 | 60 | Tu1 | B |
B-6-100 | 6 | 100 | 40 | 400 | 80 | 60 | Tu1 | B |
A-8-2 | 8 | 2 | 80 | 120 | 55 | 15.1 | Tu1 | A |
B-8-5 | 8 | 5 | 80 | 160 | 70 | 15.1 | Tu1 | B |
B-8-30 | 8 | 30 | 80 | 200 | 78 | 28 | Tu1 | B |
B-8-50 | 8 | 50 | 80 | 250 | 70 | 60 | Tu1 | B |
B-8-100 | 8 | 100 | 80 | 400 | 80 | 60 | Tu1 | B |
A-10-1 | 10 | 1 | 160 | 120 | 55 | 15.1 | Tu1 | A |
B-10-5 | 10 | 5 | 160 | 160 | 70 | 15.1 | Tu1 | B |
B-10-30 | 10 | 30 | 160 | 200 | 78 | 28 | Tu1 | B |
B-10-50 | 10 | 50 | 160 | 250 | 70 | 60 | Tu1 | B |
B-10-100 | 10 | 100 | 160 | 400 | 80 | 60 | Tu1 | B |
A-12-3 | 12 | 3 | 200 | 140 | 64 | 28 | Tu1 | A |
B-12-30 | 12 | 30 | 200 | 200 | 78 | 28 | Tu1 | B |
B-12-50 | 12 | 50 | 200 | 250 | 70 | 60 | Tu1 | B |
B-12-100 | 12 | 100 | 200 | 400 | 80 | 60 | Tu1 | B |
A-16-3 | 16 | 3 | 350 | 140 | 64 | 28 | Tu1 | A |
B-16-30 | 16 | 30 | 350 | 200 | 78 | 28 | Tu1 | B |
B-16-50 | 16 | 50 | 350 | 250 | 70 | 60 | Tu1 | B |
B-16-100 | 16 | 100 | 350 | 400 | 80 | 60 | Tu1 | B |
A-20-3 | 20 | 3 | 500 | 180 | 64 | 28 | Tu1 | A |
B-20-20 | 20 | 20 | 500 | 200 | 78 | 28 | Tu1 | B |
B-20-45 | 20 | 45 | 500 | 250 | 70 | 60 | Tu1 | B |
B-20-90 | 20 | 90 | 500 | 400 | 80 | 60 | Tu1 | B |
A-30-4 | 30 | 5 | 1000 | 180 | 60 | 38 | TU1 | A |
B-30-40 | 30 | 40 | 1000 | 250 | 70 | 60 | Tu1 | A |
B-30-80 | 30 | 80 | 1000 | 400 | 80 | 60 | Tu1 | B |
